Consul Raft Protocol vs. Raft Consensus Algorithm

As much as I love technology and learning, reading about low-level protocols is not my idea of fun. I’m going to assume a lot of people feel the same way. As an engineer, we need to know how things work fundamentally. One of the key items I see others get confused about (and I admit I got them mixed up as well when I first started at Nebulaworks) are protocols and algorithms. In this blog post, we will quickly differentiate the line between the two, as well as make some food analogies along the way!

There is one thing I want to be clear on: Protocols != Algorithms

• Protocol = set of rules that govern how a system operates (ex: Employee Handbook for McDonald’s)
• Algorithm = set of instructions that produces an output (ex: Apple Pie Recipe)

HashiCorp’s Consul Raft Protocol is an implementation of the Raft Consensus Algorithm. A couple of students developed this algorithm at Stanford. HashiCorp took the Raft Consensus Algorithm and created their version of a Raft protocol for their service mesh tool called Consul. They have written it in Golang and you can see the open source project here. While this implementation is written in Go, there are other Raft protocols written in C++, Java, Rust, etc.

ex: It’s as if grandma gave HashiCorp a recipe to her blue ribbon award-winning apple pie. Hashi attempts to create an apple pie following her recipe. Hashi knows they must use apples, sugar, cinnamon, etc but have the option to decide specifically what kind of apples and brands to use for their ingredients, as well as the option to add a little extra or less. HashiCorp also knows they need to bake their apple pie in the oven at a certain heat for a certain amount of time, however, they can decide how hot and how long they can bake their pie to get the specific results that fit their specific tastes.

Grandma Stanford’s Blue Ribbon Award Winning Apple Pie Recipe

1. Cut up 5 apples
2. Mix sugar, cinnamon, apple, and all purpose flour into a bowl
3. Pour mix into pie crust
4. Bake @ 300 degrees for 30 minutes (Please do not actually follow this recipe, it will make a very weird implementation of an apple pie!)

HashiCorp’s Apple Pie Ingredients

• 5 Gala Apples
• 1 Cup C&H White Sugar
• 2 Tablespoons Kroger All Purpose Flour
• 1 Pillsbury Pie Crust
• 2 Tablespoons of McCormick Cinnamon

• Why
• What
• How
• When
• Who
• tldr

Why

• Why do we need the Raft Consensus Algorithm?

to have a working solution to solve a specific problem (what problem? check the what section)

• Why do we need an Apple Pie Recipe?

without a recipe and an idea of what ingredients make up an apple pie, you’re probably going to end up not having an apple pie

• Why do we need the Consul Raft Protocol?

to provide an outline on how a system works

• Why do we need HashiCorp’s Apple Pie Ingredients?

without specific ingredients and information on how HashiCorp makes their pie within their context, you’re going to end up with a slightly different pie

What

• If the Raft Consensus Algorithm is a recipe to solve a certain problem, what exactly is that problem?

Raft was created to solve the need for consensus in distributed systems. In a nutshell, there was already a solution called Paxos for this problem but it was challenging to implement and even more challenging to understand. Stanford peeps wanted to create a consensus algorithm similar to Paxos but way simpler. They went ahead and created the Raft Consensus Algorithm which is as efficient as Paxos but has a different structure. They also achieved their goal of making it a lot easier to implement and understand, which is beneficial for everyone!

• What is consensus? Consensus is when everyone or everything agrees to something. Why not just get the majority vote and be done with it? Why write a whole algorithm on this? It’s not so simple when it comes to distributed systems. There could be a tie, and everyone could cast a different vote, who gets to decide, etc!

• What specific problem does the Consul Raft Protocol resolve using the algorithm? Consistency. We want to make sure that every time a read request comes into our distributed system, that it will get the most recent write or provide us with an error message. HashiCorp decided that the best way to solve inconsistency within Consul and their specific context is to follow an algorithm that uses consensus.

ex: Imagine a restaurant is a distributed system. We’ve got the host, waiter, busser, chef, dishwasher, etc. I want to put in a read request for this restaurant. This could be wanting to read the most recent version of their menu, viewing the most up-to-date list of parties waiting to be seated, seeing the available reservation slots, etc. No matter what this read request is, a client does not want to see something outdated or irrelevant and if there is a problem with their request, they would want to know as soon as possible as well as why the restaurant is unable to provide them with the information. If the host of a restaurant was the only person who had the ability to provide them with the information on # of parties waiting to be seated and they decided not to show up to work, the restaurant would not have consistency. Luckily, the restaurant has an employee handbook the provides all the information on how the restaurant should run. In order to avoid this scenario from happening, the employee handbook says there must always be more than one host on a shift. One of the hosts needs to be designated the leader and all client requests that the host position should handle will be directed to the leader. The leader will get consensus from the other hosts and respond to the client. Now the restaurant has consistency.

How

• So now that we know why we need the RCA and CRP and what problem they aim to solve, how do they work and how do they solve the consistency problem?

I think this is a great and easy way to learn Raft and this section from HashiCorp for learning the CRP. These resources will do a better job explaining than anything I can write on my own so check them out!

When

• When do Consul nodes participate in Raft?

Only Consul server nodes participate in Raft. Client nodes forward requests to the server nodes.

• When do leader nodes generate new log entries?

Leader nodes only generate new log entries when there is a request that will modify the state of the cluster. Otherwise, if it is a read-only request, the leader will return information based on the current state.

ex: A customer asks how long the wait is for a party of 4. The leader host will not need to make a change to the list and only needs to read it so the host gets the information and provides it for the customer. A customer wants to change their party from 4 to 5 people. Since this will alter the state of the waiting list, the leader host must get consensus from the other hosts to make sure that the change is approved by all hosts.

• When would there be multiple leaders?

There will be separate clusters or datasets and therefore leaders if there are multiple datacenters. This will avoid latency in the network and performance degradation.

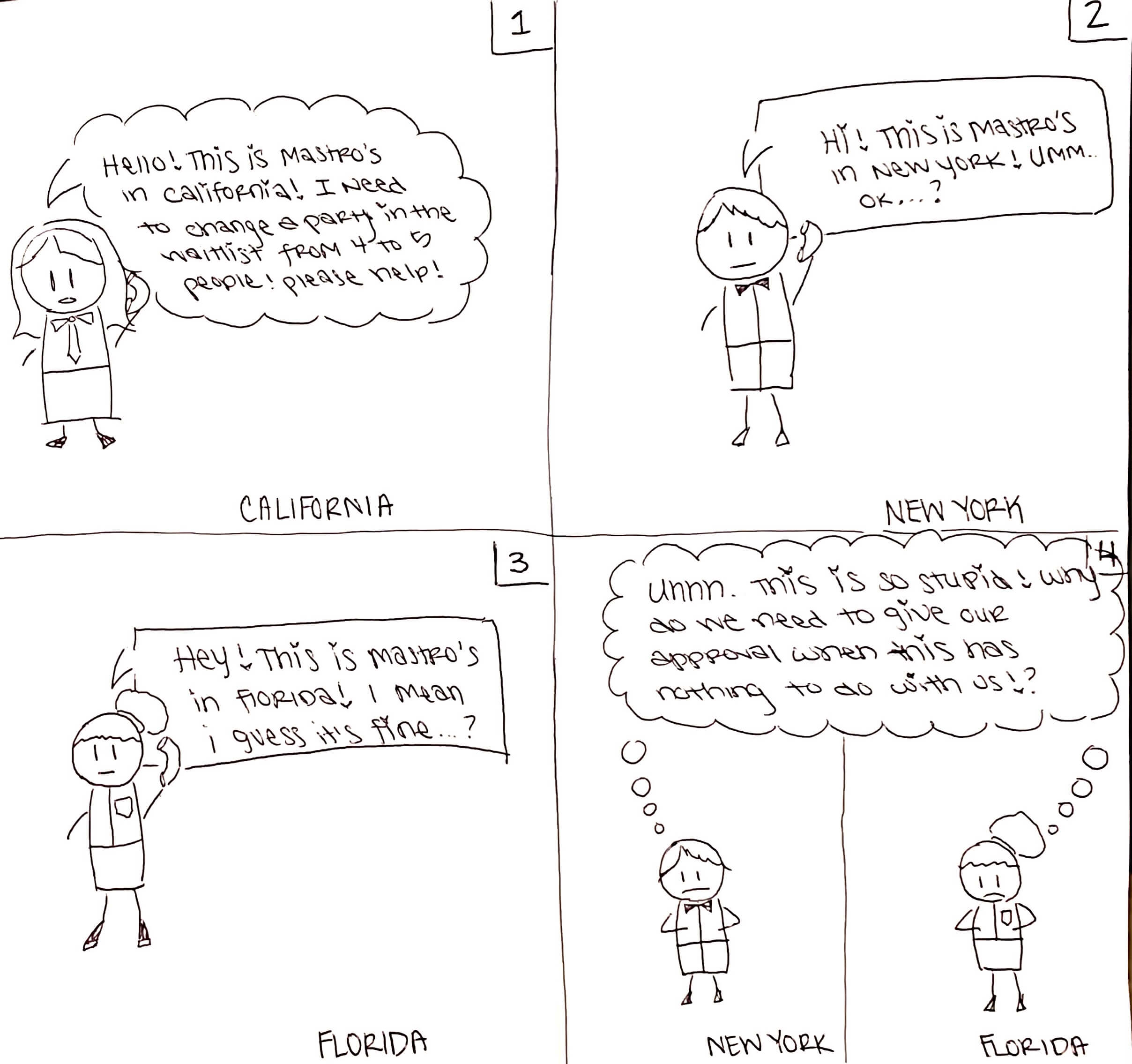

ex: Let’s take my favorite steak restaurant for this specific example, Mastro’s. Mastro’s has multiple locations with their own hosts, servers, bussers, etc. If a host had to sort through the waitlist of all the various Mastro’s locations, it would take a long time and definitely create performance issues for the restaurant. It would also not be ideal if the leader host had to get consensus from all the hosts in different locations to make a change to one restaurant. Similar to network partitions, restaurants are separate from eachother and have their own leader, clients, waitlists, etc.

Who

Protocols aren’t a Who but I am! If you’ve gotten to this point and you’re wondering who I am, my name is Lynn and I am a Cloud Engineer at Nebulaworks! I try to make analogies for complex technology so that I can understand things better. My goal is to build my own understanding in order to help teach others that are just as confused as I was.

tldr

• Protocols are NOT similar to algorithms
• Protocols give a template on how a system functions
• Algorithms use a template to create an output
• Raft Consensus Algorithm produces the solution to consensus problems within distributed systems
• Consul Raft Protocol provides rules on how Consul achieves consistency and consensus

I hope this was beneficial for you and that you are now navigating away from this page with more knowledge about Consul Raft Protocol vs the Raft Consensus Algorithm than when you first clicked in! If you have any comments or questions regarding this post or the HashiCorp stack, do not hesitate to contact us!

Now get out there and build your own distributed system or heck, maybe even create your own algorithm!
